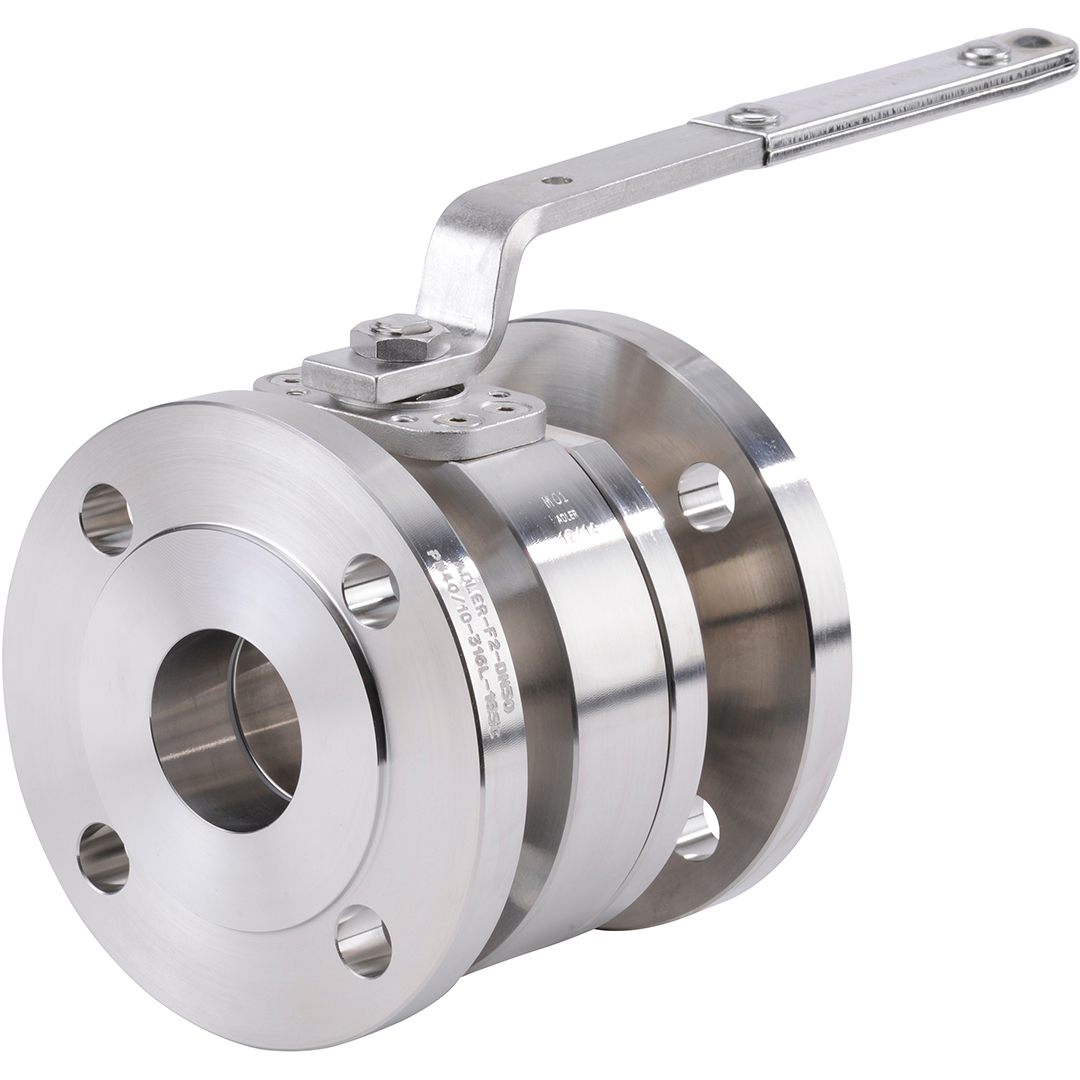

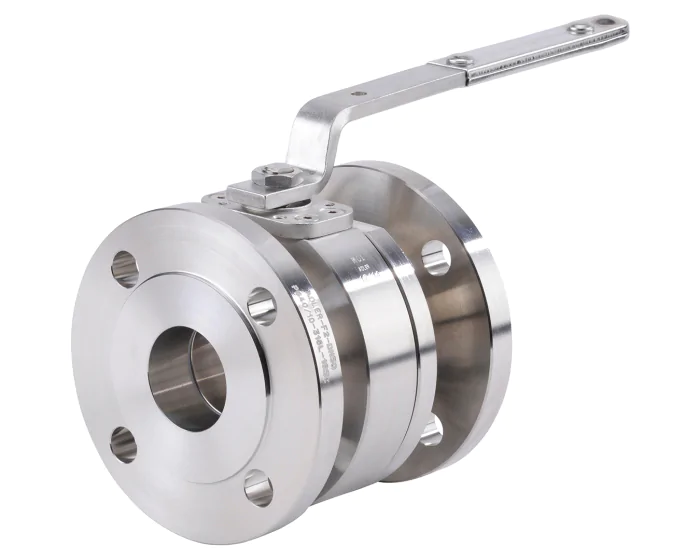

Stainless steel ball valve 751 2 piece body RF PN40/16 DN15
€546.99
(excl. btw)
The Sferaco 751 series ADLER FM2 ball valve, 2-piece body with PN16/40 flanges, stainless steel, ISO 10497 fire safety, adler type FM2, motorizable, packing gland, double tightness for industry and compressed air.
Specification
Value
DN inches NPS
1/2''
Option certificate 3.1
Yes
Construction standard
BS EN 12516-2 - ISO 14313
CE risk category
III Module H
NACE MR0175
Yes
Fire safe standard
ISO 10497:2004
SIL
SIL 3
EN face-to-face standard
EN 558 Series 27
DIN face-to-face standard
DIN 3202 F4. DIN 3357-2 ff
Face to face standard
error to be processed
Brand
ADLER
Tightness test standard
EN 12266-1 Rate A
Stem sealing material
15% Graphite filled PTFE gland packing
Antistatic device
Yes
Steam
Yes
Opening device
Handle
Fugitive emissions standard
ISO 15848-1 Class A
Application
Industry
ATEX atmosphere
Group II Cat. 2G/2D
Shaft/stem matérial
Stainless steel ASTM A479 type 316L
Square, star (mm)
MEP Ø10x6
ATEX compatible
Yes
Torque (Nm)
6
DN
DN15 - 1/2''
Face to Face (mm)
1545.0
Fluid
Hydrocarbons. gas
Body material
Stainless steel F316/F316L
Number of ways
2
Bore
Full
ISO pad 5211
Yes
Packing gland
Yes
PS (bar)
40
Connections
Flanged PN10/40
Seats
PTFE
Ball material
Stainless steel ASTM A479 316L
TS max (°C)
200
TS min (°C)
-28
Ball valve design
Split body
ATEX zone
1 & 21. 2 & 22
Warranty period
2 years
CE
Yes
Handle material
Carbon steel
Handle type
Yellow lever
Fire safe
Yes
If you have any questions about this product, please feel free to contact us .
Product Name
Product Number
EVAC Number
Price
Add to Cart
6799
Flanged PN10/40 Stainless steel F316/F316L Full Split body DN15 - 1/2''
751015
S1007000
€546.99
(excl. btw)
add to cart
6800
Flanged PN10/40 Stainless steel F316/F316L Full Split body DN20 - 3/4''
751020
S1007001
€605.89
(excl. btw)
add to cart
6801
Flanged PN10/40 Stainless steel F316/F316L Full Split body DN25 - 1''
751025
S1007002
€715.29
(excl. btw)
add to cart
6802
Flanged PN10/40 Stainless steel F316/F316L Full Split body DN32 - 1''1/4
751032
S1007003
€1,169.69
(excl. btw)
add to cart
6803
Flanged PN10/40 Stainless steel F316/F316L Full Split body DN40 - 1''1/2
751040
S1007004
€1,214.57
(excl. btw)
add to cart
6804
Flanged PN10/40 Stainless steel F316/F316L Full Split body DN50 - 2''
751050
S1007005
€1,727.89
(excl. btw)
add to cart
6805
Flanged PN10/40 Stainless steel F316/F316L Full Split body DN65 - 2''1/2
751065
S1007006
€2,645.11
(excl. btw)
add to cart
6806
Flanged PN10/40 Stainless steel F316/F316L Full Split body DN80 - 3''
751080
S1007007
€2,723.67
(excl. btw)
add to cart
